AI Vision Algorithm System

Data Download
ENGOAL's self-developed machine vision software is an algorithm tool dedicated to helping customers quickly build vision applications and solve vision inspection challenges. It meets the needs of machine vision applications such as visual positioning, dimensional measurement, defect detection, and information recognition.

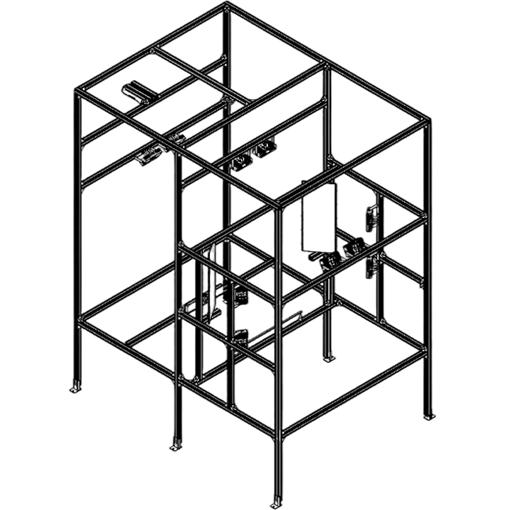

    iVissol-P2 utilizes an omnidirectional visual information collection method, combining barcode reading and visual OCR recognition technologies. It solves the identification challenges of traditional six-sided scanning devices when barcodes are abnormal or missing, improving the efficiency and accuracy of cargo reading.

  • High-Speed Scanning & Recognition

  • Image Processing Capability

  • Barcode Verification

  • Data Upload & Sharing

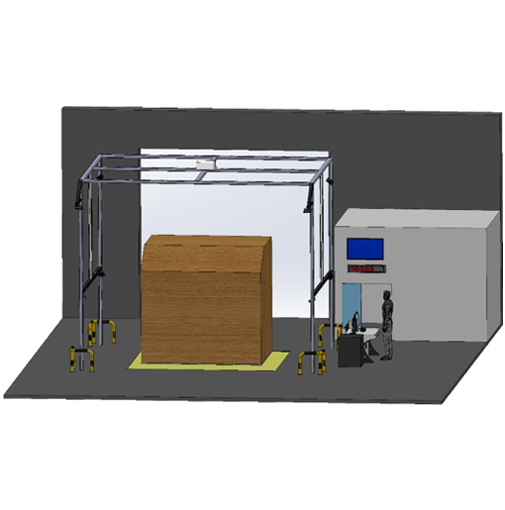

    iVissol-P3 utilizes 3D vision measurement technology, combining computer vision and 3D modeling algorithms to achieve simultaneous collection of physical dimensions, weight, and barcode information. Its measurement accuracy reaches ±1mm & ±1g.

  • Fast

    Over 3,000 pieces per hour

  • Accurate

    Volume measurement and weighing accuracy: ±1mm & ±1g.
    Barcode reading accuracy: 99%.

  • Cost-Effective

    Reduces labor costs and helps enterprises increase efficiency

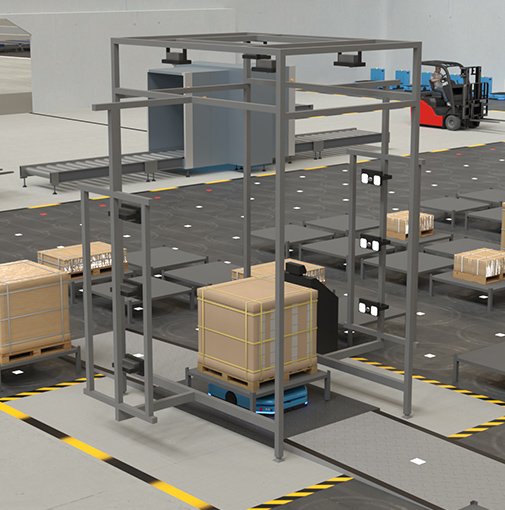

    The 3D Vision Panel Contour Measurement System is equipped with a total of 8 measuring 3D binocular laser sensors and 4 visual image acquisition cameras, deployed at the weighing station to perform contour measurement simultaneously with weighing.

  • High-precision measurement

    Adopts 3D vision intelligent inspection, with an accuracy error of ≤±20mm.

  • Rapid Scanning

    Improves air cargo efficiency

  • AI Intelligent Matching

    Intelligently matches via AI algorithms and provides judgment conclusions for panel contour inspection, identifying the location of qualified or unqualified cargos.

  • Non-Retrofit

    Applicable to top loading operations

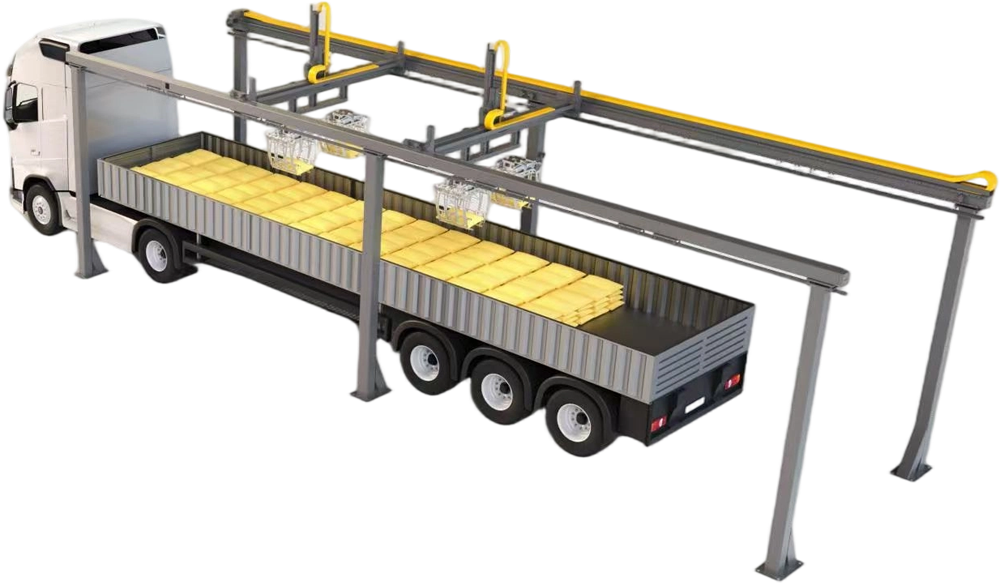

  • Bagged Material

    Cargo Type

  • 50KG

    load

  • Bidirectional

    60 min/vehicle

  • Non-Retrofit

    Applicable to box trucks

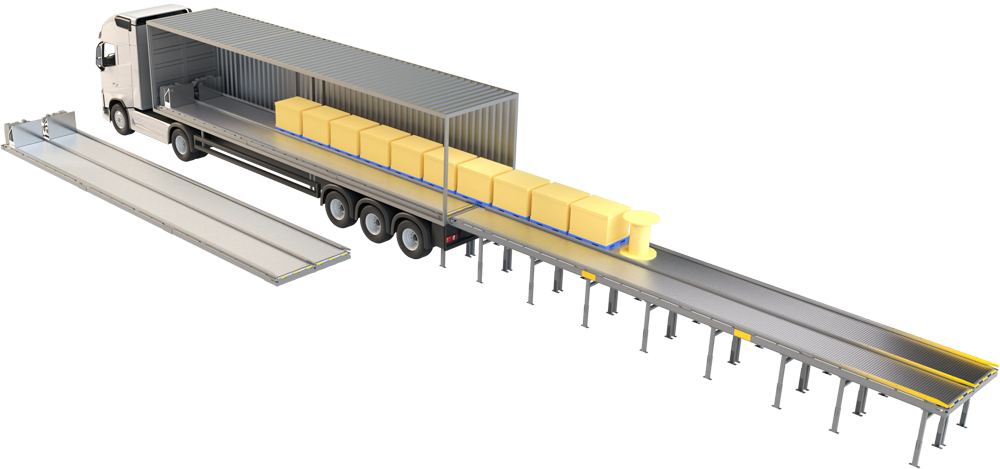

  • Stringer Pallet, Nine-Leg Pallet

    Cargo type

  • 30 T

    load

  • Bidirectional

    15 min/vehicle

  • Retrofit

    Applicable to box trucks

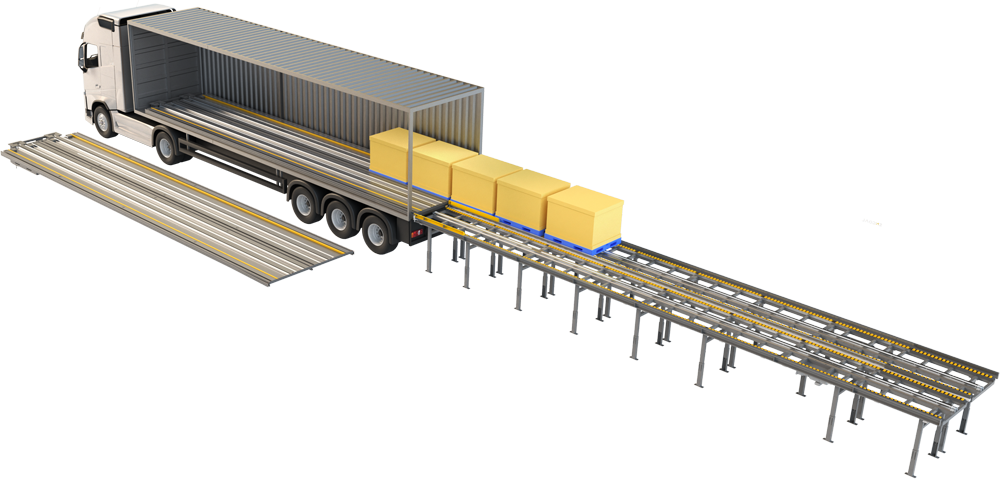

  • Stringer Pallet, Block Pallet

    Cargo type

  • 30 T

    load

  • Bidirectional

    3-5 min/vehicle

  • Retrofit

    Applicable to box trucks

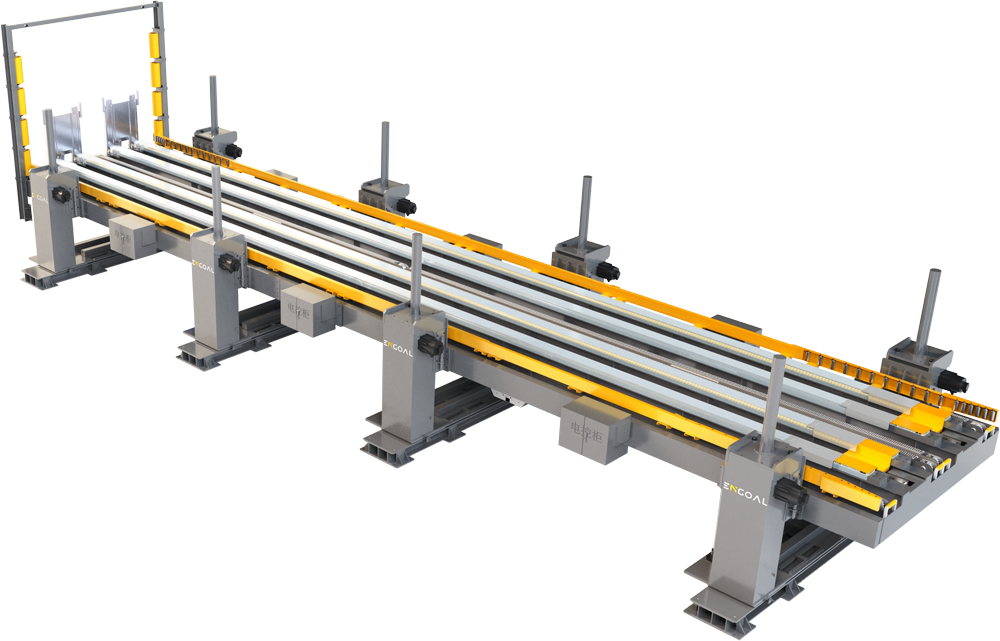

  • Compatible with Various Containers

    Cargo type

  • 30 T

    load

  • Bidirectional

    3-5 min/vehicle

  • Non-Retrofit

    Applicable to box trucks

  • Compatible with Various Containers

    Cargo type

  • 30 T

    load

  • Loading-Only

    12min/vehicle

  • Non-Retrofit

    Applicable to box trucks

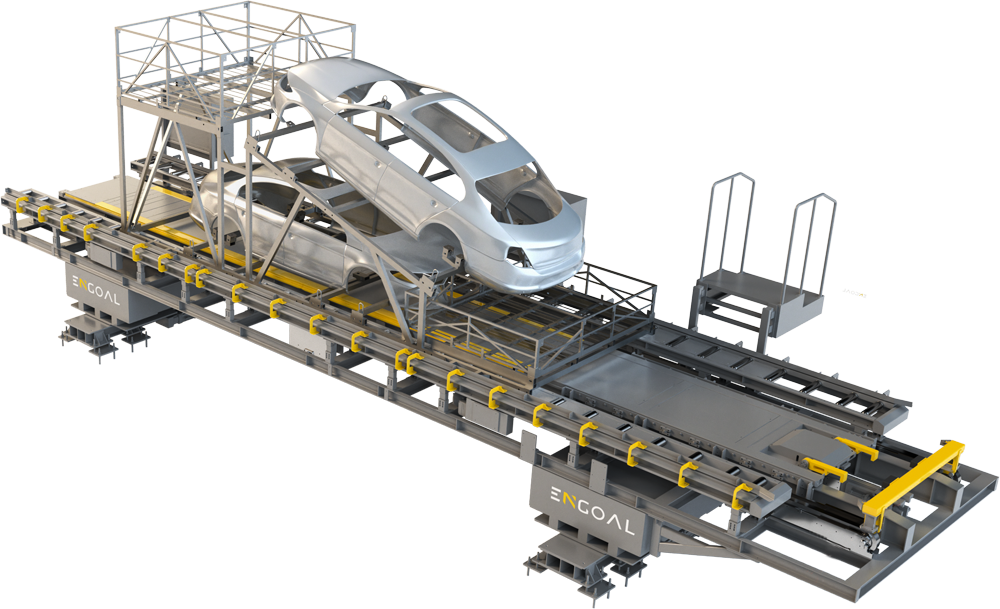

  • Vehicle-Specific Metal Fixture

    Cargo type

  • 4.5 T

    load

  • Unloading-Only

    10 min/vehicle

  • Applicable material size

    100-700mm

  • Usage scenario

    Uniformly sized cardboard boxes

  • Conveyor line

    Telescopic roller line

  • Load

    40KG

  • Operation efficiency

    400-1000 boxes/hour

  • Operating temperature

    -10℃-45℃

  • Applicable material size

    100-700mm

  • Usage scenario

    Mixed and complex scenarios involving cardboard boxes

  • Conveyor line

    Telescopic roller line

  • Load

    40KG

  • Operation efficiency

    400-1000 boxes/hour

  • Operating temperature

    -10℃-45℃

  • Applicable material size

    30-700mm

  • Usage scenario

    Mixed and complex scenarios such as cartons and soft bags. Can be customized according to needs

  • Conveyor line

    Customizable conveyor type

  • Load

    40KG

  • Operation efficiency

    600-1200 boxes/hour

  • Operating temperature

    -10℃-45℃
